Availability: Usually ships the next business day.
AV-2020 all-in-one 20x PTZ camera features a 1/2.8 inch 2.1MP sensor, with advanced ISP, providing full HD video. 20x optical zoom lens with 60° field of view ensures clear and distortion-free imaging within 100 feet. Resolution is up to 1920×1080 with a frame rate up to 60fps. It supports H.264 and H.265 video compression with low network delay. AV-2020 has IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface, compatible with any video conferencing/streaming software. It also supports line in audio through IP (embedded audio though IP ONLY), AAC and LPCM audio encoding. Control protocol options include VISCA, PELCO-P, PELCO-D, VISCA over IP (over both TCP and UDP) and ONVIF.
Related items: AV-W20 Wall Mount Bracket
AV-C20 Ceiling Mount Bracket

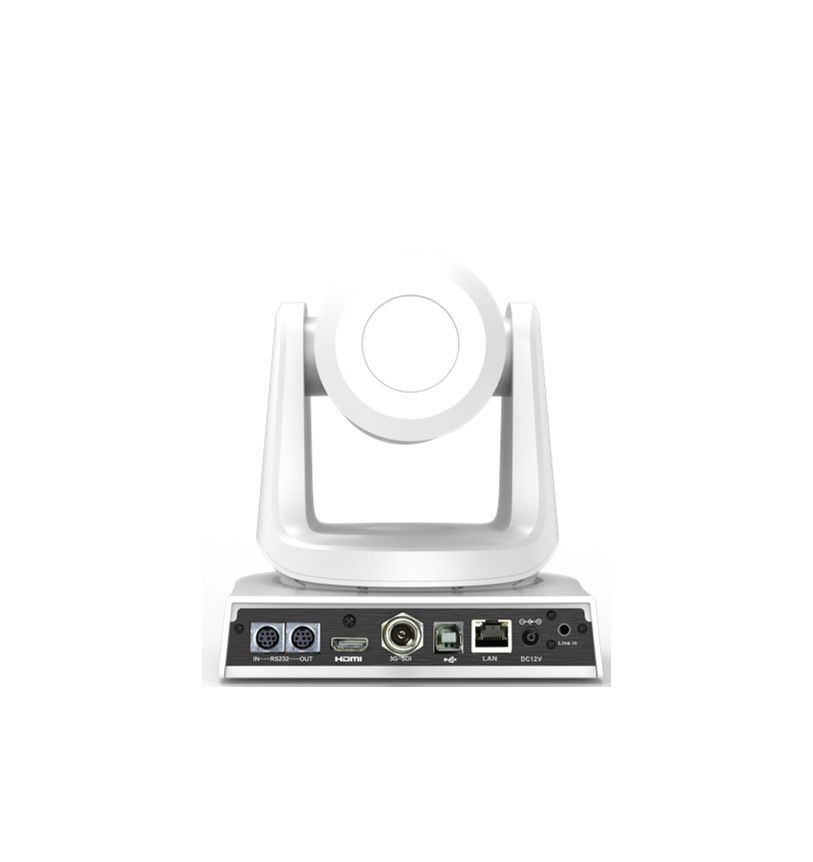

AV-2020 20x SDI/HDMI/USB PTZ Camera w/ PoE+
- Advanced ISP, 1/2.8 inch 2.1MP sensor, providing full HD video.
- 20x optical zoom lens, 2x digital zoom with 60-degree FOV.
- IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface.
- White Balance/ Exposure/ Focus/ Iris can be adjusted manually.
- Support PoE: one single CAT5/6 for video, control, and power.
- Support line-in audio function: through IP stream only. AAC and LPCM audio encoding.
- Control options: RS232/UVC1.1; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF.
- Support daisy chain, max 7 cameras connected under VISCA protocol.
