Availability: 2–3 weeks
Designed for professional productions, live streaming, conferencing, education, and worship environments, the AViPAS AV-2046 delivers intelligent tracking, stunning 4K video, and flexible connectivity in a compact PTZ solution.
Powered by advanced AI Auto Tracking technology, the AV-2046 automatically detects and follows presenters with smooth and accurate movement — keeping subjects perfectly framed without requiring a dedicated camera operator. Custom tracking zones and adjustable framing provide greater flexibility for dynamic productions.
Capture every detail in ultra-sharp 4K UHD up to 3840×2160p60 with the high-quality 1/1.8" Sony CMOS sensor. Combined with a powerful 20x optical zoom lens and advanced low-light performance, the AV-2046 delivers crisp, vivid images in both large venues and challenging lighting conditions.
Built for modern IP workflows, the camera supports simultaneous 4K HDMI 2.0, 3G-SDI, USB, and IP video outputs, including NDI®|HX3 for low-latency, high-efficiency network video production. Support for SRT, RTMP, RTSP, and ONVIF ensures seamless integration into professional streaming and broadcast environments.
An integrated Tally Light provides clear on-air indication during live productions, making multi-camera workflows more intuitive and efficient for operators and presenters alike.

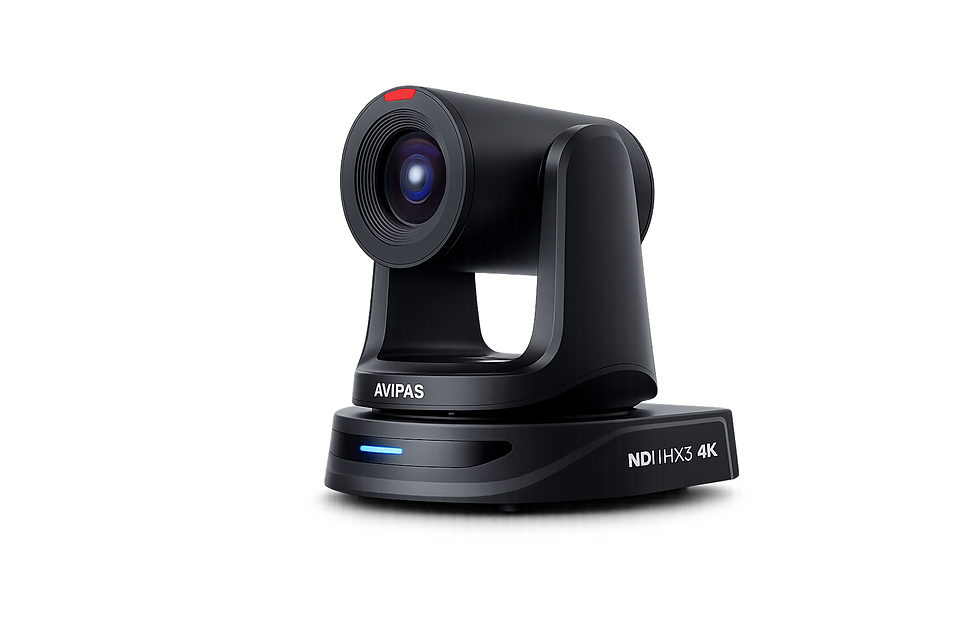

AV-2046 20x Auto Tracking 4K HDMI /SDI/USB2.0/NDI®|HX3
● Auto Tracking PTZ
● 20x Optical zoom, 8x Digital zoom
● 1/1.8" CMOS Sensor, 8.42MP effective pixel
● Resolution: 3840x2160 up to 60 fps
● lens: f=6.8mm~120mm, F1.61~ F4.13
● 0.5 Lux minimum illumination @ F1.8
● Field of View: 58.5°
● Pan: -170° ~ +170°, Tilt: -90° ~ +90°
● 2D&3D digital noise reduction
● Horizontal/Vertical image flip
● 4K HDMI2.0, 3GSDI, USB2.0, NDIHX3 and IP simultaneous outputs
● H.264/H.265/MJEP Video streaming encoding
● 3.5mm TRS Audio Line Level input with AAC and LPCM audio encoding, (audio embedded out via HDMI/SDI/IP)
● RTSP/RTMP/SRT etc. streaming protocols
● Preset positions: 255 via serial or IP; 10 via IR remote control
● Communication interface: RS232 (RS485), USB-C and RJ45
● Control Protocol options: VISCA/VISCA Over IP/Pelco-D/Pelco-P/OnviF/UVC1.1
● PoE+ supported: IEEE 802.3at Standard
● Standard wall/ceiling mounting
● Tripod mountable (1/4"-20 female on the bottom)
